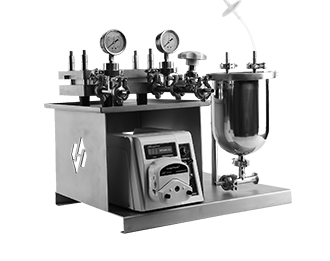

TFF Device Mini T05
Basic information
● Model：Mini T05
● Process capacity：30～90L/H
● Membrane form：1~3 pieces 0.5㎡ imported original cassette with flat sheet membrane
● Power unit： LONGER original peristaltic pump 220V, maximum flow 9L/MIN
● Feed tank ：Material AISI 316L, volume 3.5L
Description
Specification
Optional items
System Survey● Laboratory research and development, and pilot scale TFF research
● Hygienic design, simple structure, easy to operate
●Adaptive brand membrane cassette like Millpore, Sartorius, PALL

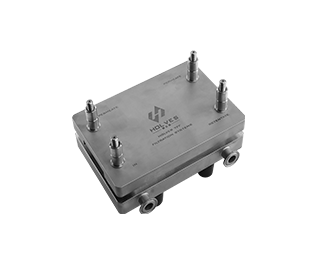

Stainless Steel Clamps
● Material AISI 316L
● Sanitary interface, inner surface mirror polishing, outer surface high-grade sandblasting
● Matching 0.5㎡imported original cassette with flat sheet membrane, optional brands are Millpore, Sartorius, PALL

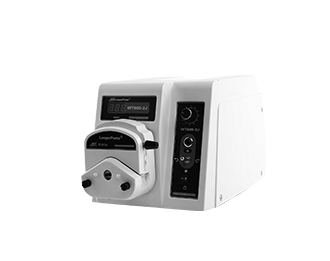

Power Unit
● LONGER original peristaltic pump, the quality is reliable
● Maximum flow：9L/MIN，maximum pressure：0.3Mpa
● Control：on off control, direction control, speed control (0-5V, 0-10V, 0- 10KHZ are optional)

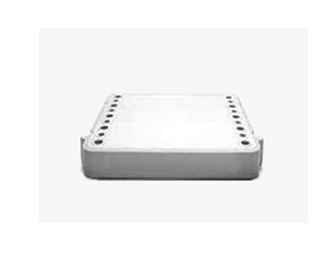

Flat Membrane Bag
●Filtration area：0.5㎡, ultrafiltration / microfiltration is optional
● Membrane material：Biomax, PLC, PVDF
●Optional brands：Millpore, Sartorius, PALL
Model: Mini T05
